| Product Classification |
| Brand |
HELIAX® |
| Product Type |
Wireless and radiating connector |
| General Specifications |
| Interface |
N Female |
| Body Style |
Straight |
| Mounting Angle |
Straight |
| Electrical Specifications |
| Connector Impedance |
50 ohm |
| Operating Frequency Band |
0 – 8000 MHz |
| Average Power at Frequency |
0.4 kW @ 900 MHz |
| Cable Impedance |
50 ohm |
| 3rd Order IMD, typical |
-112 dBm @ 910 MHz |
| 3rd Order IMD Test Method |
Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) |
565.00 V |
| dc Test Voltage |
1600 V |
| Outer Contact Resistance, maximum |
0.25 mOhm |
| Inner Contact Resistance, maximum |
1.00 mOhm |
| Insulation Resistance, minimum |
5000 MOhm |
| Peak Power, maximum |
6.40 kW |
| Shielding Effectiveness |
-110 dB |
| Mechanical Specifications |
| Outer Contact Attachment Method |
Self-clamping |
| Inner Contact Attachment Method |
Solder |
| Outer Contact Plating |
Silver |
| Inner Contact Plating |
Gold |
| Interface Durability |
500 cycles |
| Interface Durability Method |
IEC 61169-4:17 |
| Connector Retention Tensile Force |
450 N | 101 lbf |
| Insertion Force |
124.55 N | 28.00 lbf |
| Insertion Force Method |
IEC 61169-16:9.3.5 |
| Pressurizable |
No |
| Coupling Nut Proof Torque |
1.70 N-m | 1.25 ft lb |
| Coupling Nut Proof Torque Method |
IEC 61169-16:9.3.11 |
| Coupling Nut Retention Force |
445.00 N | 100.04 lbf |
| Coupling Nut Retention Force Method |
IEC 61169-16:9.3.11 |

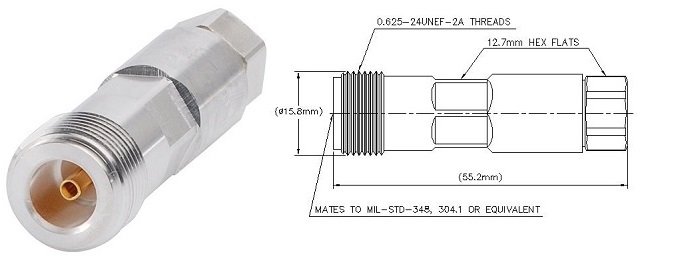

| Dimensions |
| Nominal Size |
1/4 in |
| Diameter |
15.83 mm | 0.62 in |
| Height |
15.83 mm | 0.62 in |
| Length |
55.19 mm | 2.17 in |
| Weight |
100.46 g | 0.22 lb |
| Width |
15.83 mm | 0.62 in |
| Environmental Specifications |
| Operating Temperature |
-55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature |
-65 °C to +125 °C (-85 °F to +257 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating |
Mated |
| Immersion Test Method |
IEC 60529:2001, IP68 |
| Moisture Resistance Test Method |
IEC 60068-2-3 |
| Mechanical Shock Test Method |
IEC 60068-2-27 |
| Thermal Shock Test Method |
IEC 60068-2-14 |
| Vibration Test Method |
IEC 60068-2-6 |
| Corrosion Test Method |
IEC 60068-2-11 |
| Standard Conditions |
| Attenuation, Ambient Temperature |
20 °C | 68 °F |
| Average Power, Ambient Temperature |
40 °C | 104 °F |
| Average Power, Inner Conductor Temperature |
100 °C | 212 °F |
Return Loss/VSWR
| Frequency Band |
VSWR |
Return Loss (dB) |
| 45–4100 MHz |
1.12 |
25.00 |
| 4100–6200 MHz |
1.17 |
22.00 |
| 6200–11000 MHz |
1.43 |
15.00 |
Regulatory Compliance/Certifications
| Agency |
Classification |
| RoHS 2011/65/EU |
Compliant by Exemption |
| ISO 9001:2015 |
Designed, manufactured and/or distributed under this quality management system |
| China RoHS SJ/T 11364-2014 |
Above Maximum Concentration Value (MCV) |
|
