UHF Crimp Jack RG58

(Code: 255-2058-070)
Add to Enquiry List

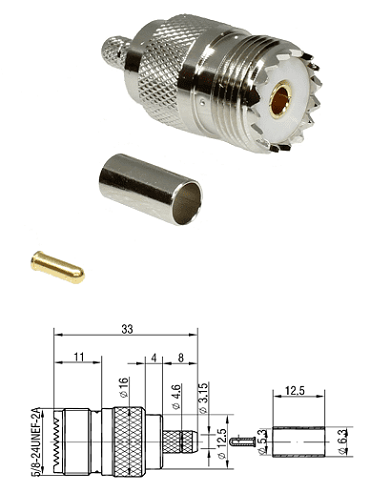

UHF Crimp Jack RG58

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - ABS

Crimp Ferrule - Brass, Nickel Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 300 MHz

Dielectric Withstanding Voltage - 2000V(RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 5/8”-24UNEF-2A

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C

Assembly

Pin: 1.72mm hex

Outer: 5.41 mm hex
