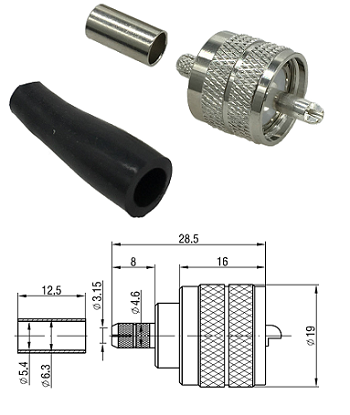

UHF Crimp Plug RG58 (Solder Pin)

(Code: 255-1058S-070)
Add to Enquiry List
UHF Crimp Plug RG58 (Solder Pin)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Silver Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 300 MHz

Dielectric Withstanding Voltage - 2000V(RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 5/8”-24UNEF-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C

Assembly

Pin: Solder

Outer: 5.41 mm hex
