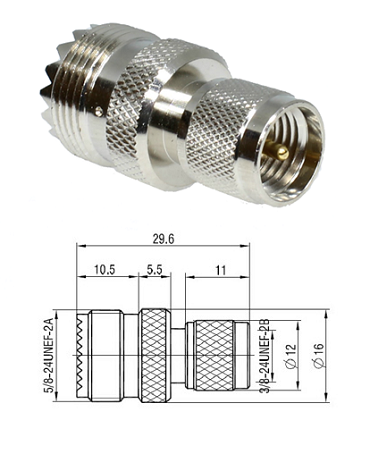

UHF Female to Mini UHF Male Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE

Nut - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50Ω

Frequency Range Max. - DC - 300GHz

Dielectric Withstanding Voltage - 2000V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating -  5/8-24UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -45°C to +85°C
