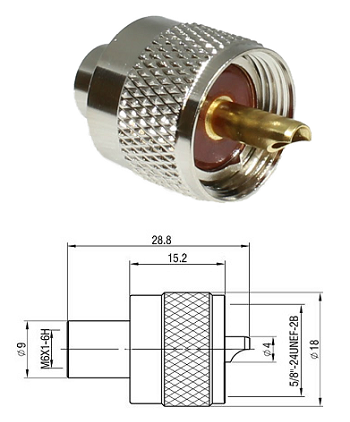

UHF Solder Plug RG58, LMR200 (Nickel Plated)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Pin - Brass, Gold Plated

Insulator - BAKELITE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 300 MHz

Dielectric Withstanding Voltage - 2000V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
