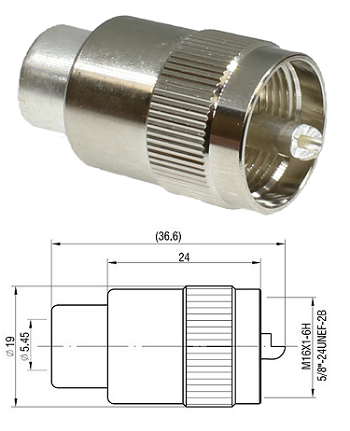

UHF Solder Plug RG58 (Silver Plated)

(Code: 255-650-082)
Add to Enquiry List
UHF Solder Plug RG58 (Silver Plated)

Materials & Plating

Shell/Body - Brass, Silver Plated

Contact Pin - Brass, Silver Plated

Nut - Brass, Nickel Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 300 MHz

Dielectric Withstanding Voltage - 2000V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C
