Universal Grounding Kit for RG223-RG58-GR59-RG8-RG213/214 - 1/4" - 3/8"

(Code: 420-UG1)
Add to Enquiry List

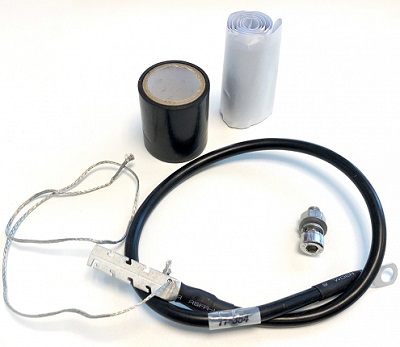

Universal Grounding Kit for RG223-RG58-GR59-RG8-RG213/214 - 1/4" - 3/8"

This universal earth grounding kit uses a stainless steel bracket with a rubber insert, which contains the in-built tinned copper earth.For use with: RG223, RG58, GR59, RG8, RG213/214, 1/4", 3/8" cable.


Description

Tin Plate Copper Contact bar (special lug)

Tin Copper Tube Þ3mm Length 0.5m

Vinyl Mastic Tape 016mm² Thickness Length 30cm

PVC Black UV Proof Tape Length 2m

Screw UNI 5391 M8 x 20

Grower UNI 1751 M8

Nut UNI 5588 M8

Cable Section 16mm² Length 600mm

Eyelet Terminal 16mm²



Normative Documents

Lightning test: IEC 61312-1 grade III-IV

Waterproof test: IP67 (acc.to IEC 529)

Temperature Range: -50ºC + 80ºC


Acceptance Test

Visual and dimensional control on sample

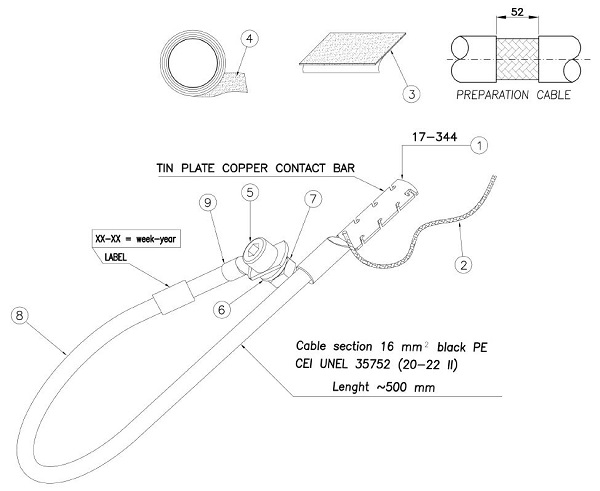

Drawing
