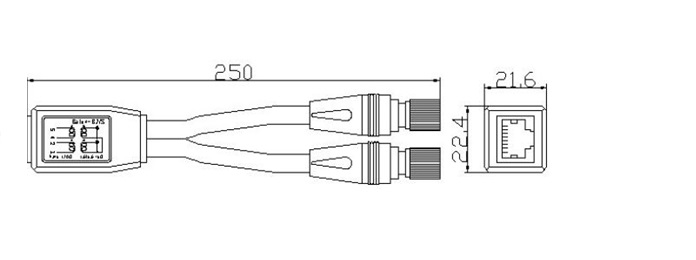

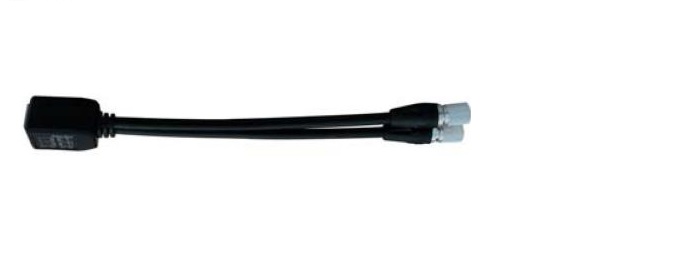

Dual Cable Balun RJ45 - 1.6/5.6 Male (250mm)

(Code: 260-0917-069-025)
Length (m) :
Add to Enquiry List
Dual Cable Balun RJ45 - 1.6/5.6 Male (250mm)
Electrical
Matching Impedance 75 ohm unbalanced coaxial to 120 ohm balanced twisted pair
Bit Rates 2Mbit/s and 8Mbits as per G.703
Return Loss 2Mbit/s and 8Mbits as per G.703 requirements
Insertion Loss <0.2dB for 2Mbit/s service (51kHz to 3MHz)
<0.3dB for 8Mbit/s service (211kHz to 10MHz)
Cross Talk >60dB from 51kHz to 10MHz between two channels
Pulse Shape 2Mbit/s and 8Mbit/s as per G.703
Mechanical
Coax Connector Body Brass. Finish Cu/Ni
Coax Connector Insulator PTFE
Coax Connector Inner Contact Male: Brass or CuPh. Finish Cu/Ni/Au
Plastic Enclosure ABS Colour: Black
RJ45 Housing Glass Filled Polyester
RJ45 Contacts CuPh. Finish Cu/Ni/Au
RJ45 Connector
Type Shielded, 8 Position, 8 Contacts
Environmental
Working Temperature -30° C to 75° C
