Dual Cable Balun RJ45 - BNC Male 150mm

(Code: 260-0915-063)
Add to Enquiry List

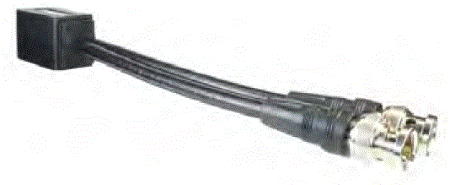

Dual Cable Balun RJ45 - BNC Male 150mm


Module, 2 Balun with 2 x BNC Male Coaxial Connectors to 1 RJ45

Offers two E1 or T1 (2Mbps or 1.5 Mbps) paths into 1 Shielded RJ45 socket from BNC Male with 250 mm cable. Can also be used for E2 and T2 applications. Other cable lengths to order.

Provides electrical isolation of 1KV from input to output terminals.

Housed in an insulated wall mountable container.

Impedance 75 to 120 Ohm

Stable over working temperature of –5
°C to +55°C

Typical Specifications
 Typical Specifications  Up to 8 Mbps
 Insertion Loss  Less than 0.4 dB in band 51 KHz to 3.072 MHz
 Return Loss  Better than 25 dB from 51 KHz to 3.072 MHz for each channel
 Cross Talk  Better than 60 dB from 51 KHz to 3.072 MHz
 Pulse Shape  Meets ITU-T G.703 Mask
 Physical Characteristics
 The mechanical endurance of the coaxial connectors are designed to give in excess of 200 connect/disconnect cycles.
 Component Material  Finish
  Balun Body  ABS UL-94-V0  Black
  BNC Connector Body  Brass  Nickel
  Contact  Brass  Gold
  Insulator  PTFE
  RJ45 Socket  Shielded
  Contact  Brass  Gold
